Facility and Equipment

When you select American Precision Electronics,
you acquire a manufacturing partner!
PCB Assembly - Engineering Services - Box Builds - Fulfillments

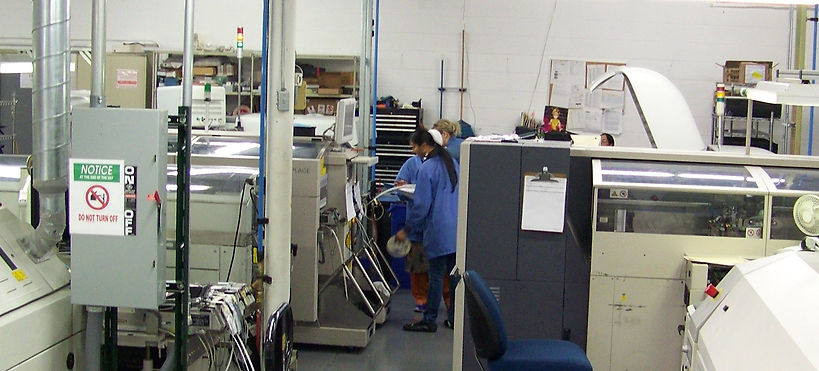

SMT - Surface Mount Technology Assembly

Solder Paste Print & Inspect

Part Placement & Reflow

3 Complete SMT Lines

Thru-Hole Assembly

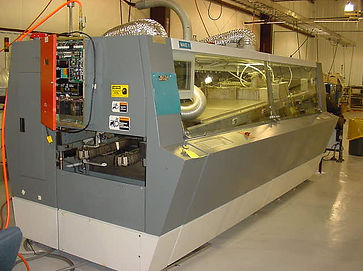

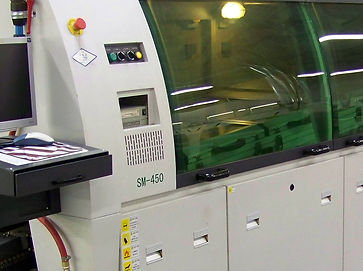

JT SM-450 (Lead-free) & Electrovert (Leaded) Wave Solder Lines

Digitally controlled wave solder with microprocessor controlled spray fluxer

Dual pre-heat & dual wave dynamics

Pallet and conveyor board supports used for all thru-hole & mixed technologies

Test Equipment

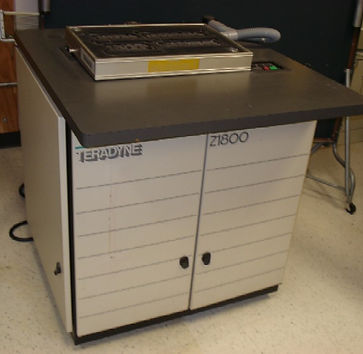

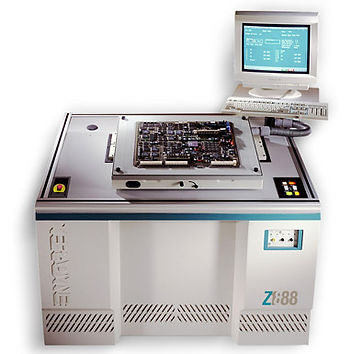

Teradyne Z1805-1 and 2 Teradyne Z1800

Full Function Tester

Bed of Nails type tester with full power up feature

Tests for shorts, opens, component values, polarities and tolerance

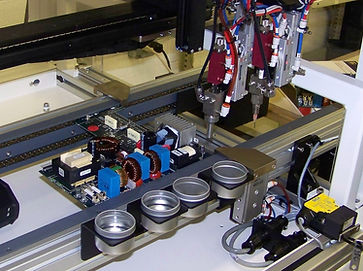

Selective Soldering Apollo Seiko JSR 4400

Apollo Seiko JSR 4400

Soldering Robots

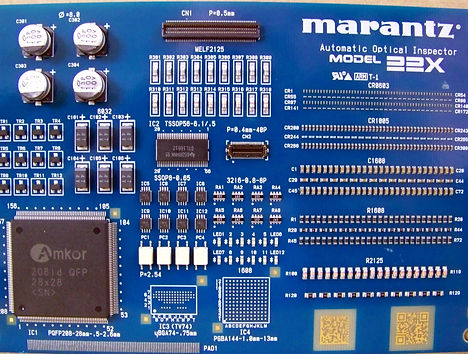

Automated Optical Inspection

Marantz iSpector 350ML

3 angle RGB LED for solder join spectral analysis

Apple iMac PC COntrol

Functional Test and In-circuit Programming

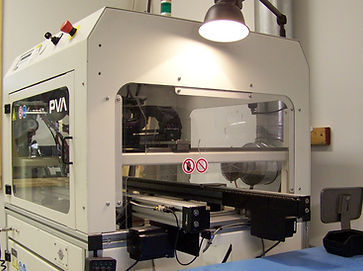

Conformal Coating

PVA 650

4-axis Automated Dispensing System

Quality Control

1st Article Inspection for All Value-added Processes

STANDARDS:

IPC-A-610

ANSI/ESD S20.20-2007

AS9100D / ISO 9001:2015

ITAR Registered

CAGE Code: 6YXY6

American Precision Electronics, Inc.

25W624 Saint Charles Road,

Carol Stream, IL 60188

Ph:  (630) 510-8080

Fax:(630) 510-8084
